CX-S-6.0 Миниатюрный насос-дозатор с магнитной шестерней

Miniature gear pump is a special reinforced PEEK material made of gea- rs and bearings, high-precision ceramic shaft, one injection molding gear; The product has an ultra-high service life and wear-resistant type. It is an ideal choice for transporting small flow, high pressure, and no puls- ation corrosive liquids, abrasive liquids, and high-temperature liquids.


Features

Corrosion resistanceHigh viscosityHigh precision
Low pressure dropNo pulsationHigh temperatur-e resistance

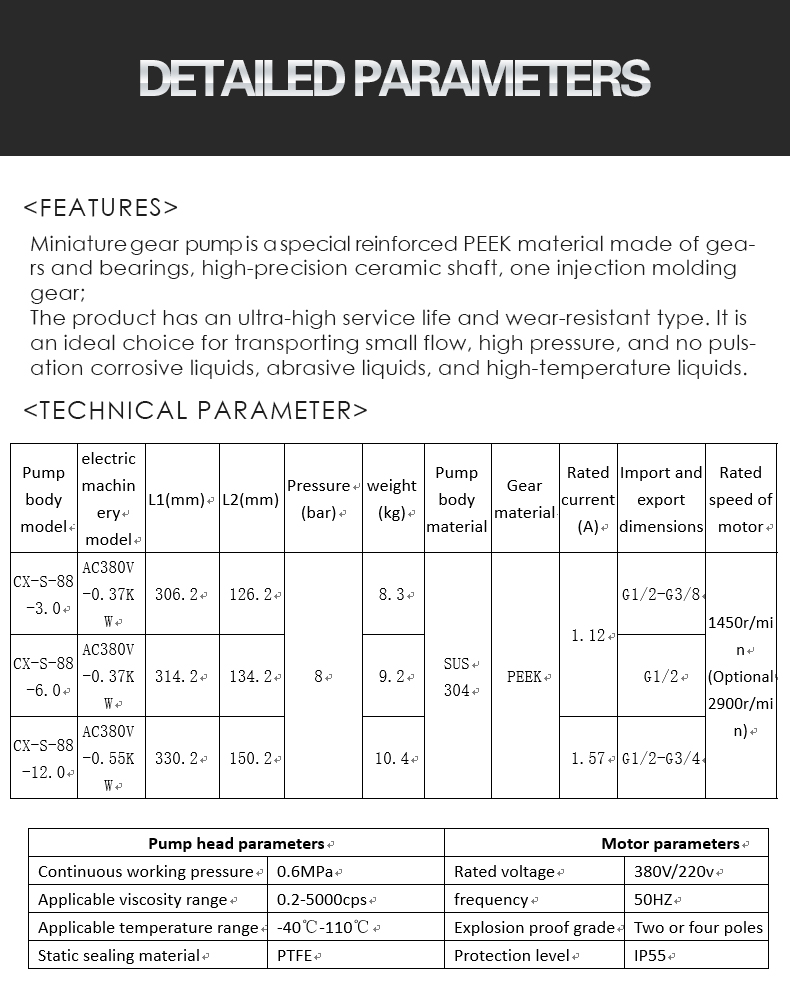

Technical Data

Model Number: CX-S-6.0

Gear material: PEEK

Working pressure: 0.6Mpa

Body material: SUS304

Displacement: 6ml/r

Viscosity range: 0.2~5000CP

Import and export size: G1/2

Working tempertu: -40~100℃

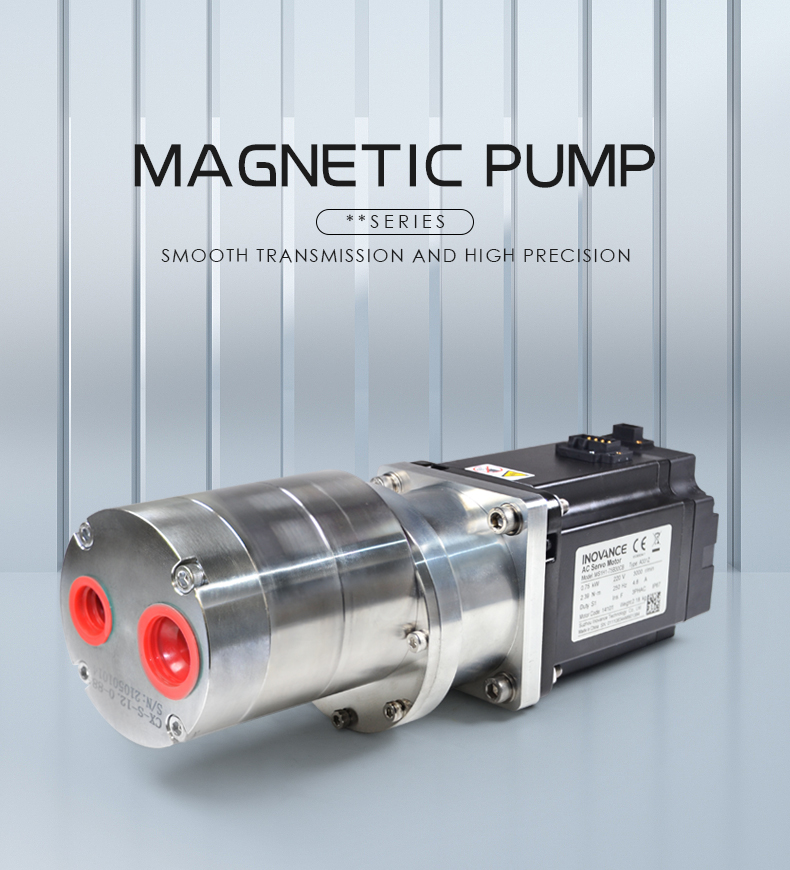

magnetic gear pump

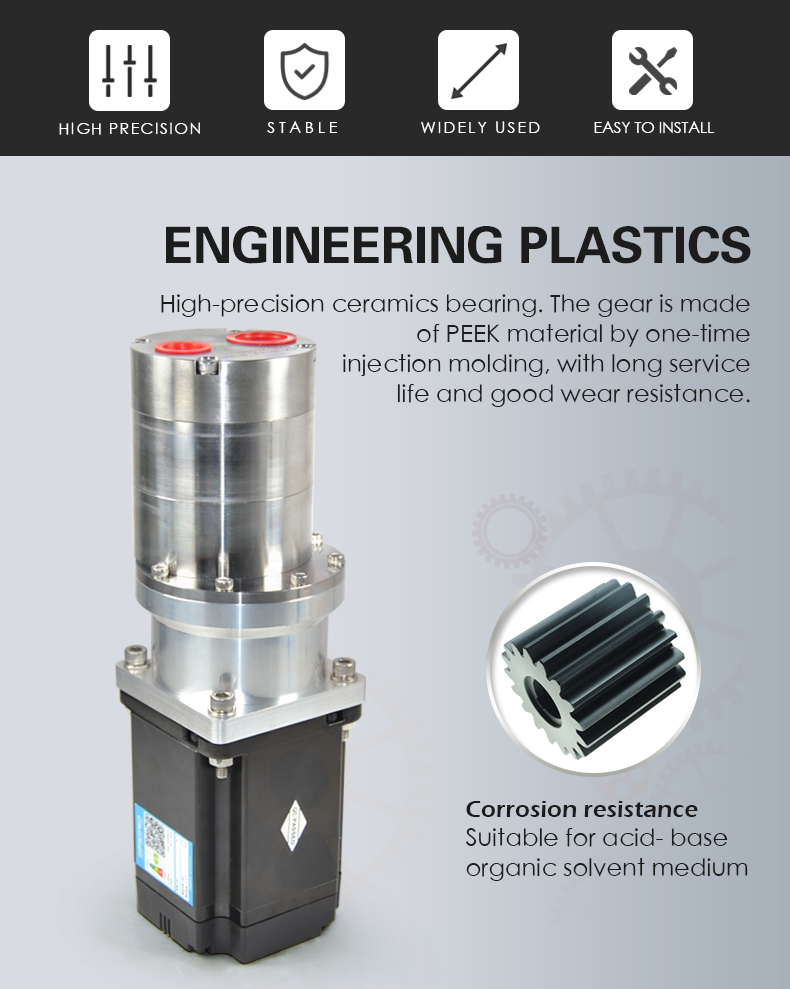

High-precision ceramics bearing. The gear is made  of PEEK material by one-time  injection molding, with long service  life and good wear resistance.

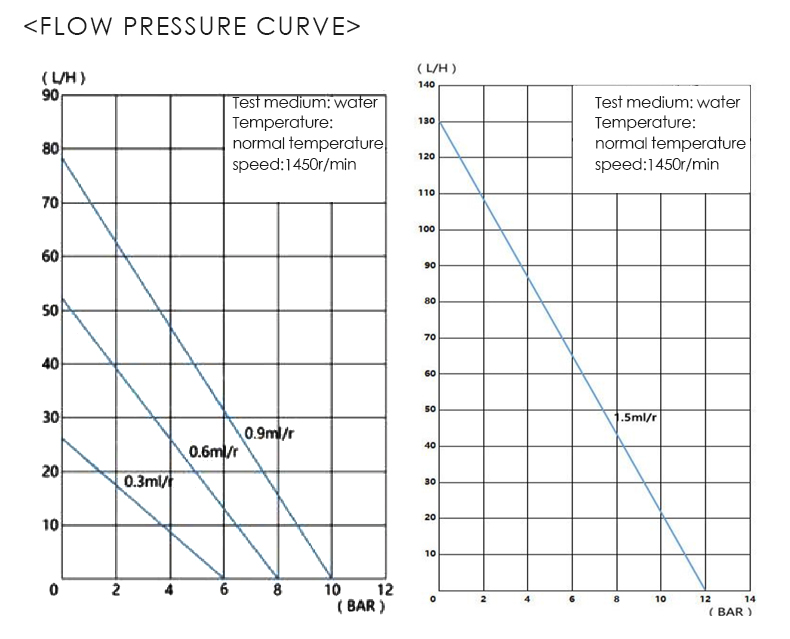

Pump displacement

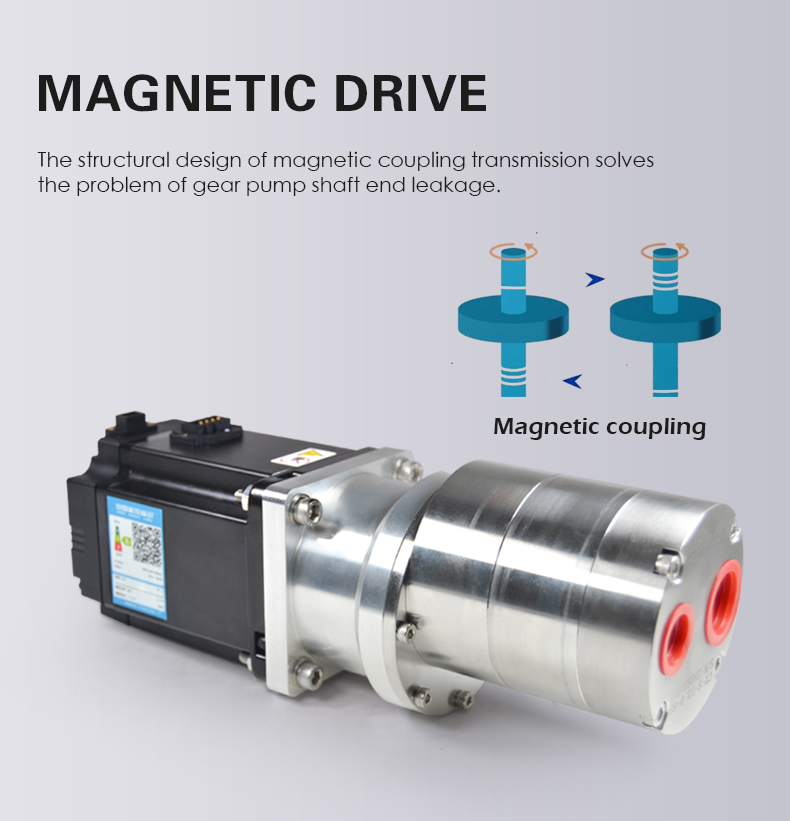

The structural design of magnetic coupling transmission solves  the problem of gear pump shaft end leakage.

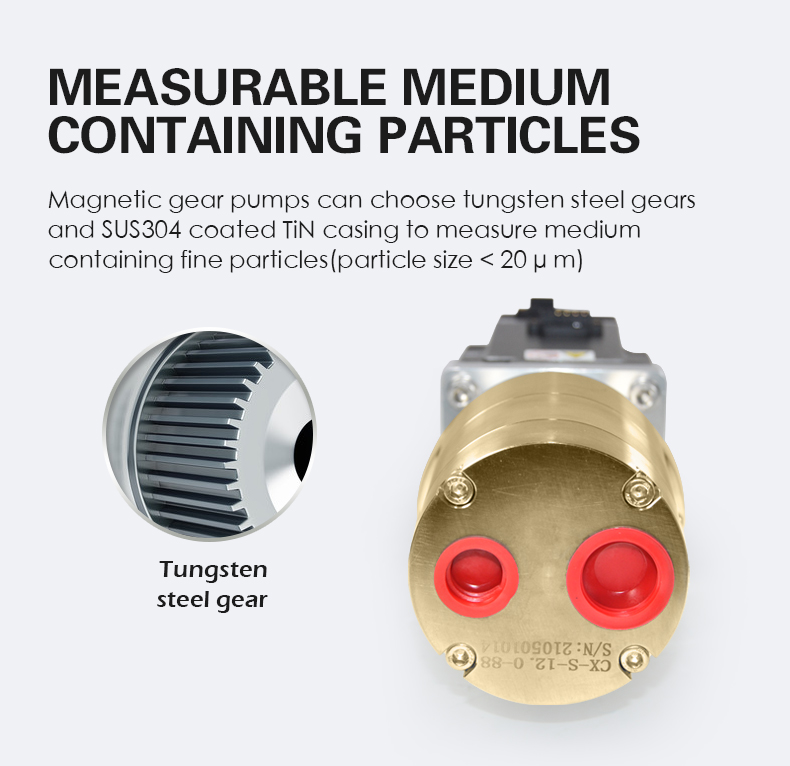

Magnetic gear pumps can choose tungsten steel gears  and SUS304 coated TiN casing to measure medium  containing fine particles(particle size < 20 μ m)

Miniature gear pump is a special reinforced PEEK material made of gea- rs and bearings, high-precision ceramic shaft, one injection molding  gear; The product has an ultra-high service life and wear-resistant type. It is  an ideal choice for transporting small flow, high pressure, and no puls- ation corrosive liquids, abrasive liquids, and high-temperature liquids.

CX-S-12 Miniature magnetic gear pump(图7)

CX-S-12 Miniature magnetic gear pump(图8)

CX-S-12 Miniature magnetic gear pump(图9)

CX-S-12 Miniature magnetic gear pump(图10)

CX-S-12 Miniature magnetic gear pump(图11)


Downloads

Miniature magnetic gear pump

Dateiformat P D F
