Расходомер с овальной шестерней CX-OGFM

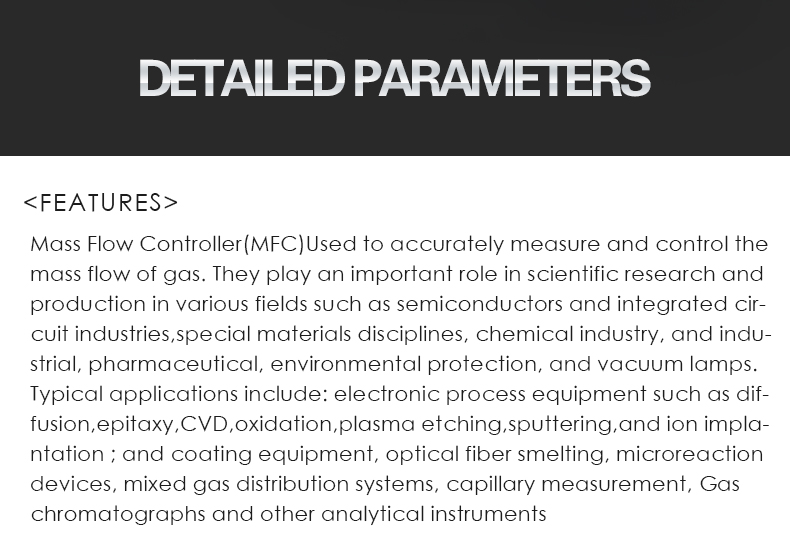

Mass Flow Controller(MFC)Used to accurately measure and control the mass flow of gas. They play an important role in scientific research and production in various fields such as semiconductors and integrated cir- cuit industries,special materials disciplines, chemical industry, and indu- strial, pharmaceutical, environmental protection, and vacuum lamps. Typical applications include: electronic process equipment such as dif- fusion,epitaxy,CVD,oxidation,plasma etching,sputtering,and ion impla- ntation ; and coating equipment, optical fiber smelting, microreaction devices, mixed gas distribution systems, capillary measurement, Gas chromatographs and other analytical instruments

Features

Wide measuring rangesLCD displayHigh precision
Low pressure dropSmall sizeFast response

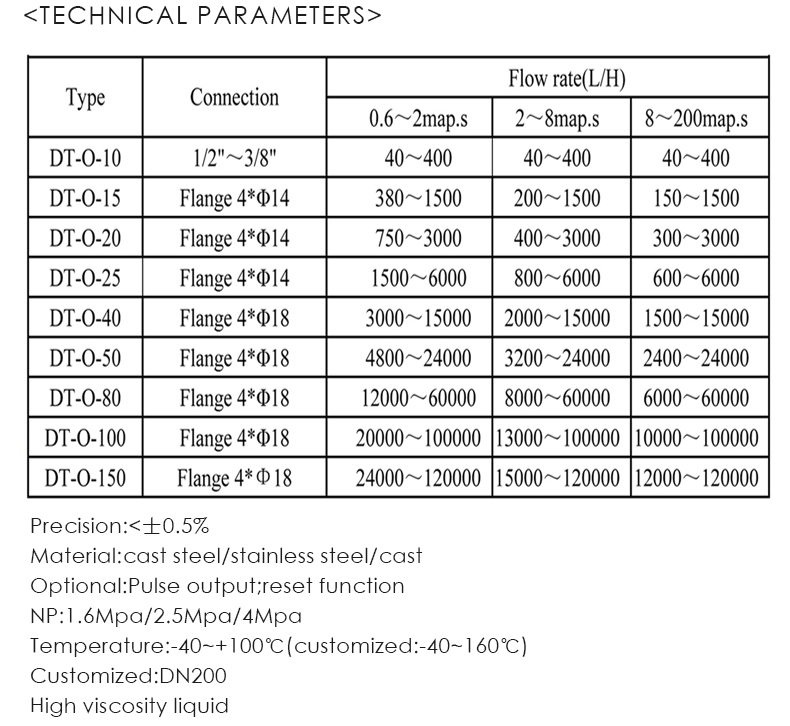

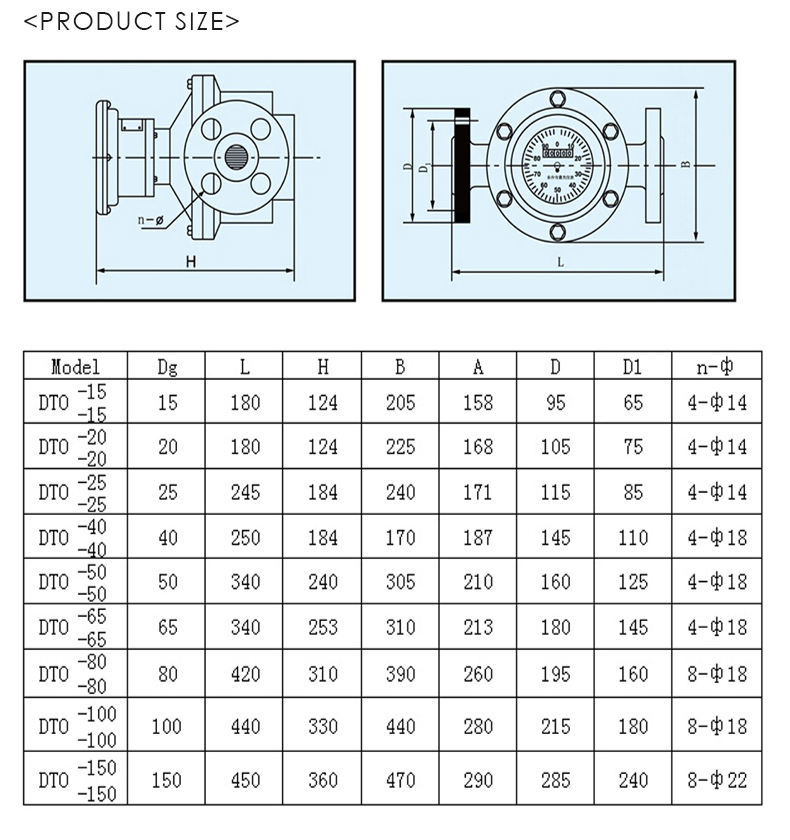

Technical Data

Model Number: CX-EMFM

Accuracy: 0.5%

Working pressure: 1.6Mpa,2.5Mpa,4Mpa

Material: cast steel/stainless steel/cate iron

Viscosity of liquid: 0.6-200MPa.s

Flow range: 0.6-200m2/h

Power: 12VDC

Working temperature: -10~100℃,-30~160℃

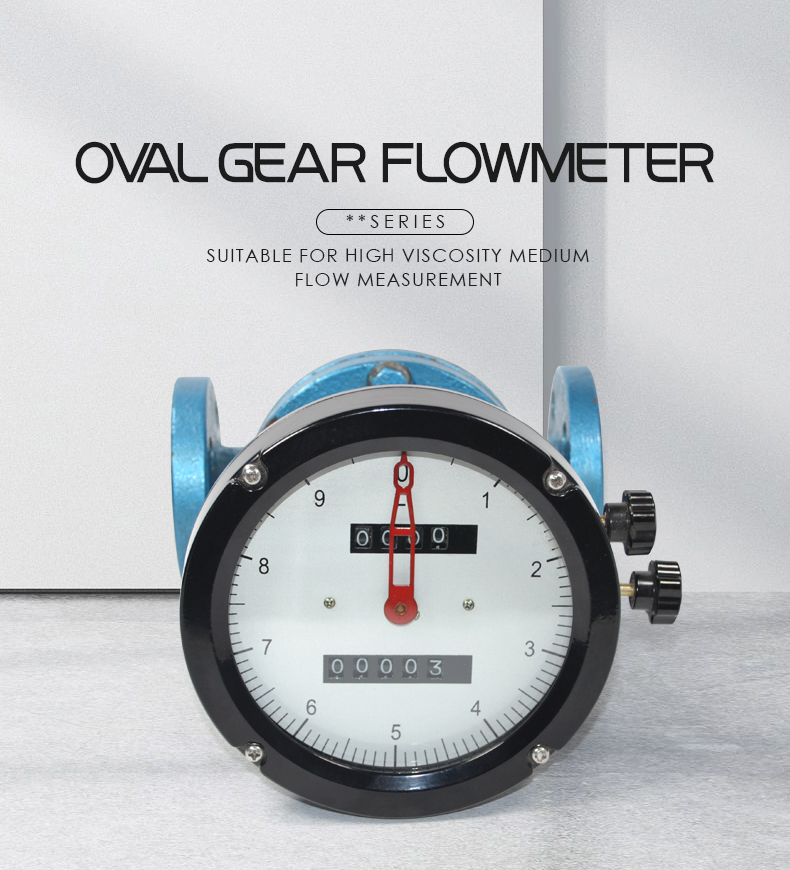

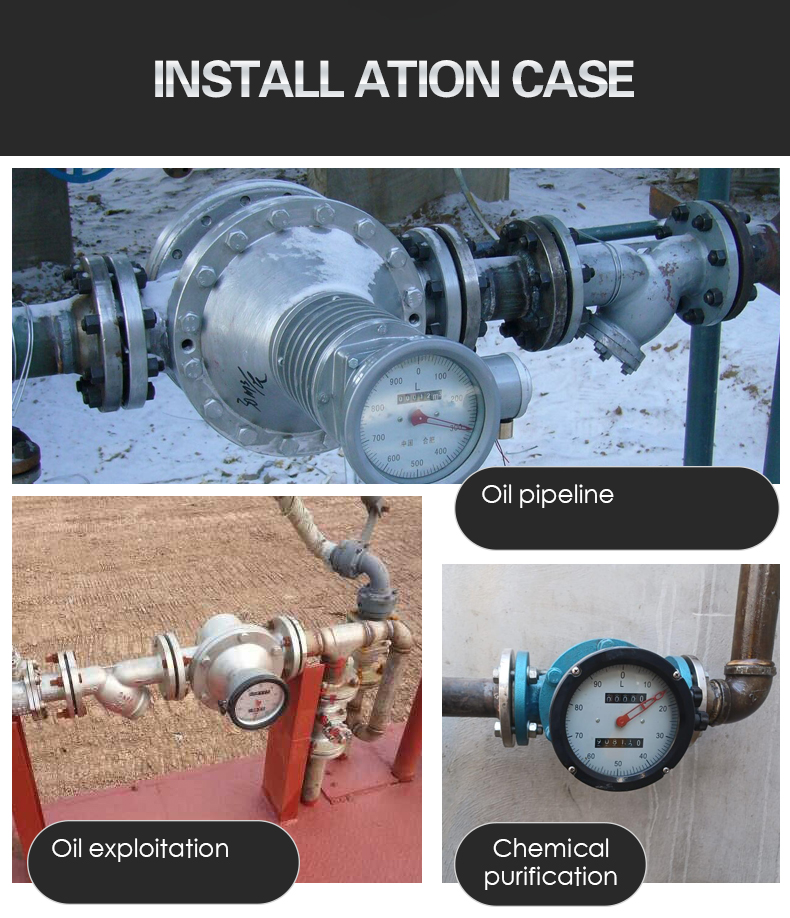

oval gear flowmeter Suitable for high viscosity medium flow measurement

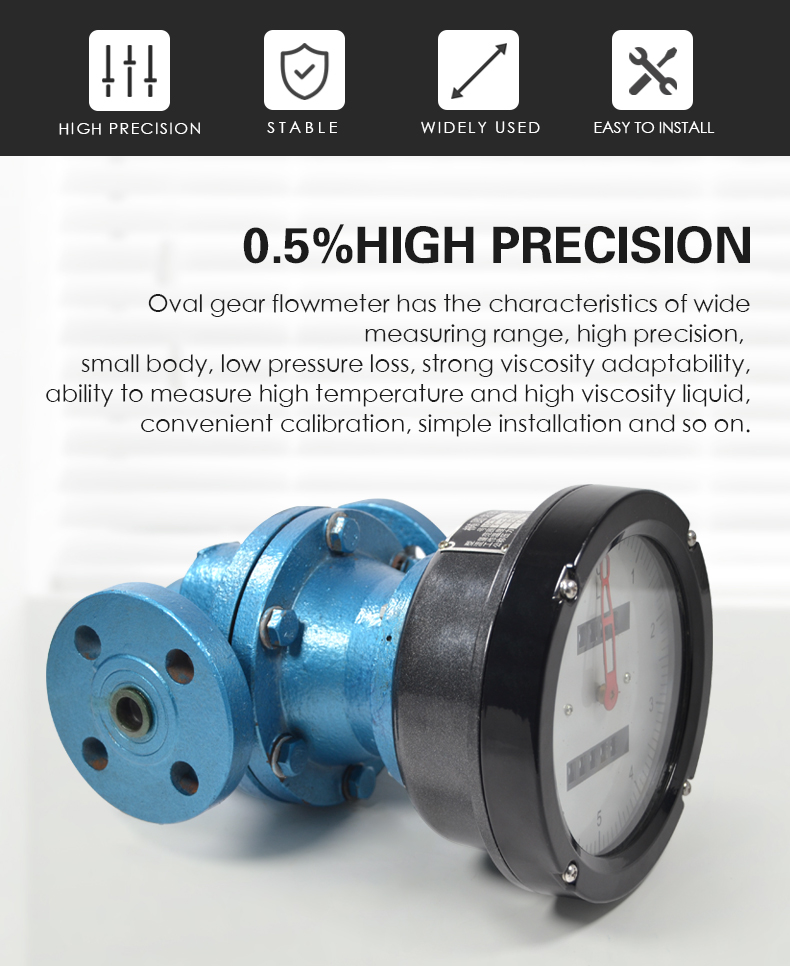

Oval gear flowmeter has the characteristics of wide  measuring range, high precision,  small body, low pressure loss, strong viscosity adaptability,  ability to measure high temperature and high viscosity liquid,  convenient calibration, simple installation and so on.

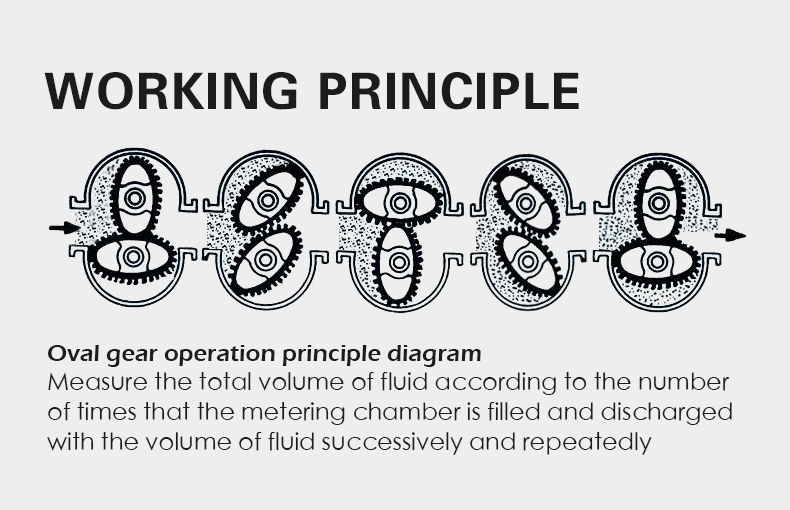

Oval gear operation principle diagram Measure the total volume of fluid according to the number  of times that the metering chamber is filled and discharged  with the volume of fluid successively and repeatedly

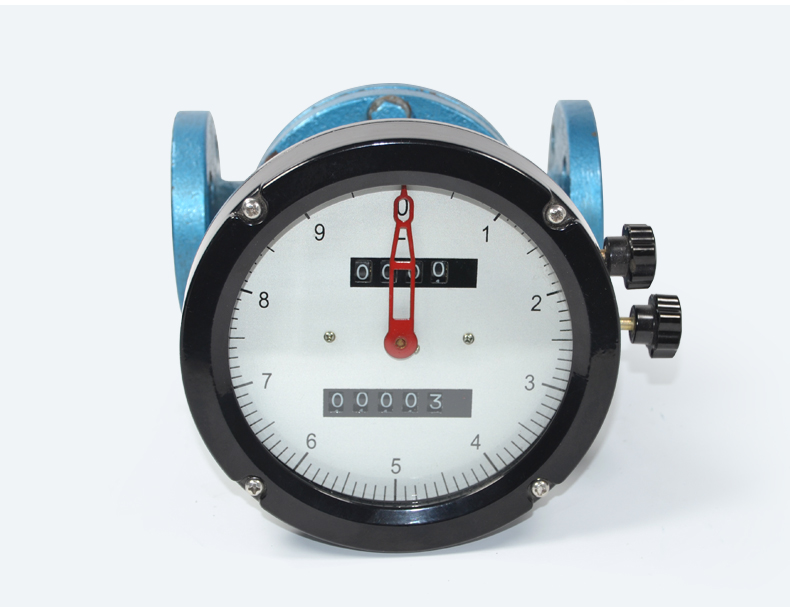

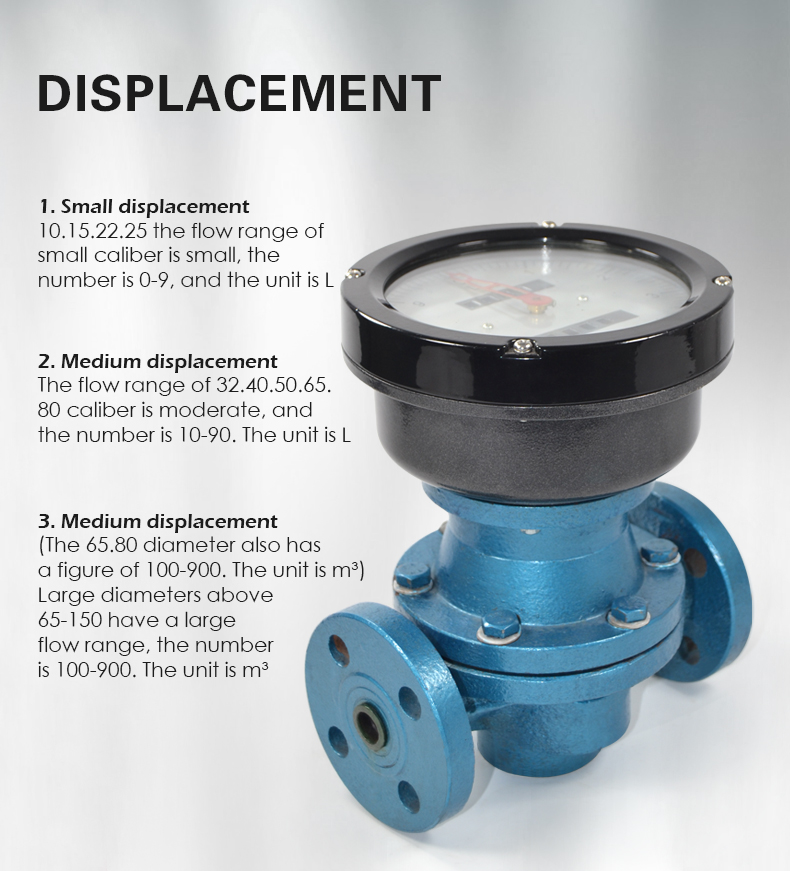

1. Small displacement 10.15.22.25 the flow range of  small caliber is small, the  number is 0-9, and the unit is L.2. Medium displacement The flow range of 32.40.50.65. 80 caliber is moderate, and  the number is 10-90. The unit is L 3. Medium displacement (The 65.80 diameter also has  a figure of 100-900. The unit is m³) Large diameters above  65-150 have a large  flow range, the number  is 100-900. The unit is m³

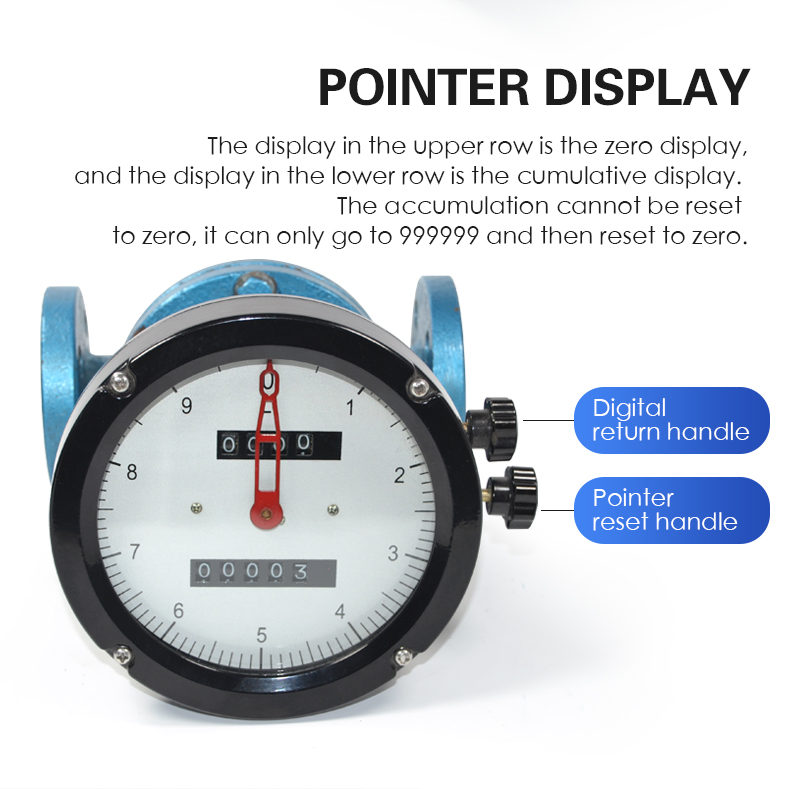

The display in the upper row is the zero display,  and the display in the lower row is the cumulative display.  The accumulation cannot be reset  to zero, it can only go to 999999 and then reset to zero.

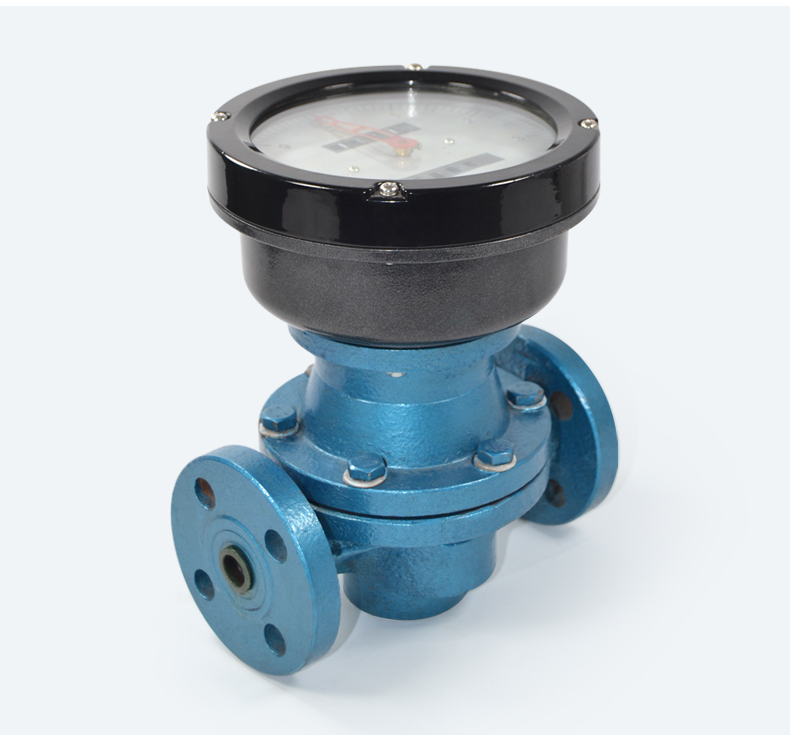

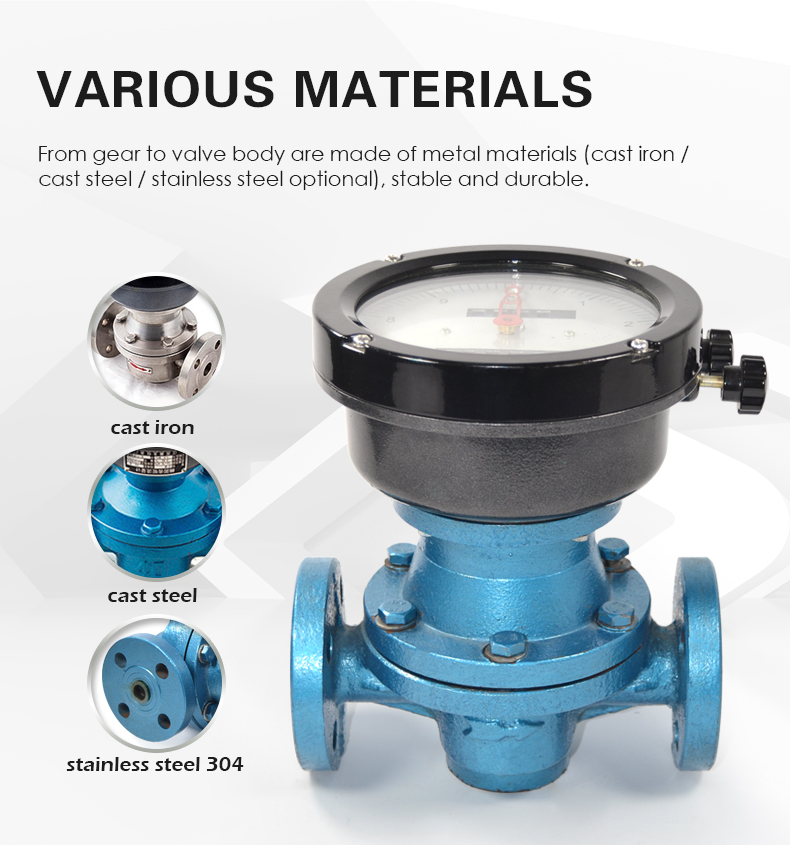

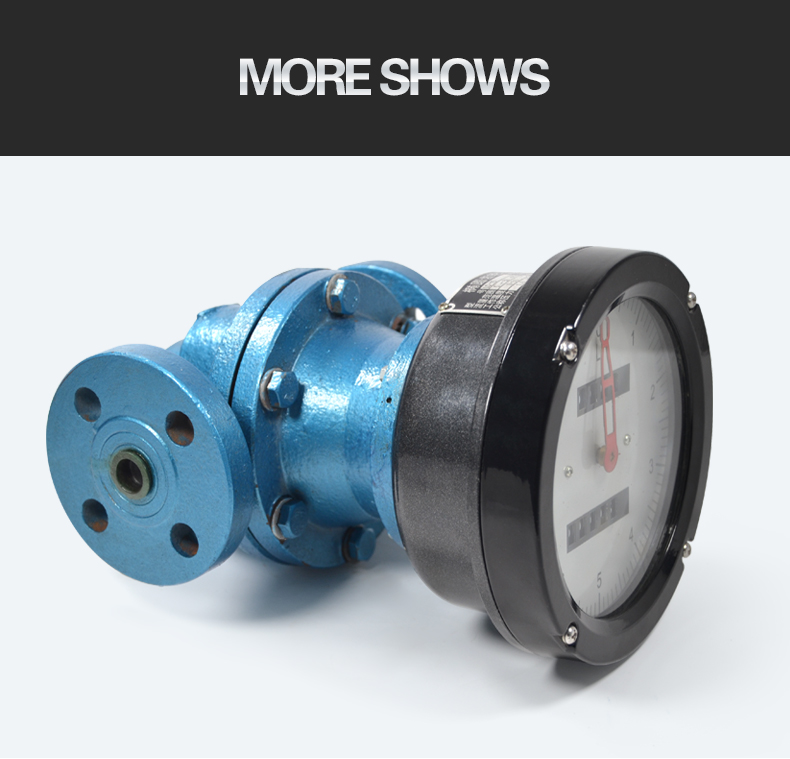

From gear to valve body are made of metal materials (cast iron /  cast steel / stainless steel optional), stable and durable.

Mass Flow Controller(MFC)Used to accurately measure and control the mass flow of gas. They play an important role in scientific research and production in various fields such as semiconductors and integrated cir- cuit industries,special materials disciplines, chemical industry, and indu- strial, pharmaceutical, environmental protection, and vacuum lamps. Typical applications include: electronic process equipment such as dif- fusion,epitaxy,CVD,oxidation,plasma etching,sputtering,and ion impla- ntation ; and coating equipment, optical fiber smelting, microreaction devices, mixed gas distribution systems, capillary measurement, Gas  chromatographs and other analytical instruments

Precision:<士0.5% Material:cast steel/stainless steel/cast Optional:Pulse output;reset function NP:1.6Mpa/2.5Mpa/4Mpa Temperature:-40~+100℃(customized:-40~160℃) Customized:DN200 High viscosity liquid
